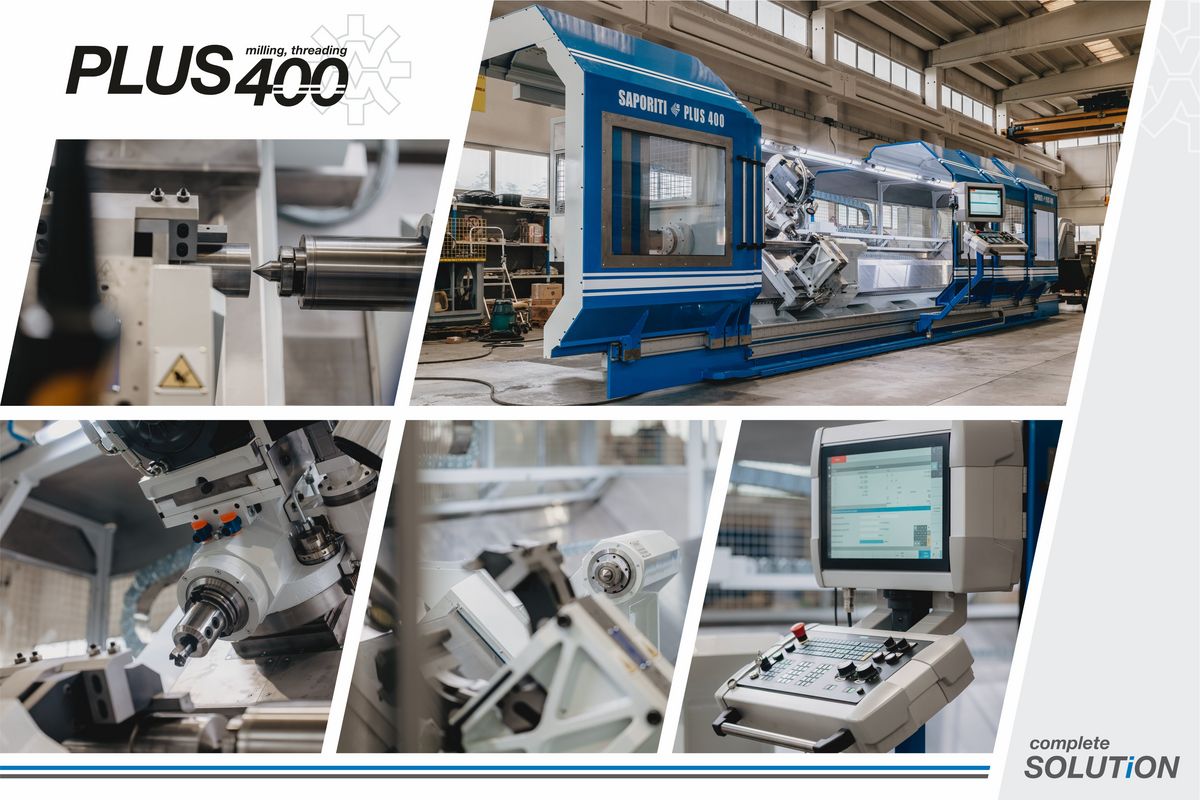

The SAPORITI PLUS 400 is a versatile thread-milling machine for screws and rotors, combining multi-axis motion with a slanted bed for excellent ergonomics and chip control. Designed for threads, splines and hobbing operations, the PLUS 400 supports both conventional and advanced cutter systems and comes ready for integrated process probing and automated tool handling.
Benefits
Flexible multi-axis milling for screws up to medium diameters and long lengths
Suitable for spline shafts and conical screws; hobbing option available
Reliable, low-noise operation thanks to sealed, chilled spindle motors
Compact chip handling: telescopic doors and under-bed chip conveyor
Technical highlights
| Controlled axes | 5 (Longitudinal, Transversal, Vertical, Spindle, Cutters tilting) |
| Workpiece capacity | up to 8 000 mm length; max diameter 250 mm |
| Steady rest ranges | 20 - 130 mm; 30 - 220 mm; 35 - 240 mm (hydraulic, self-centring; supports conical screws) |
| Spindle / head | ISO 50 or HSK frontal cutter spindle (customer choice); sealed 22 kW motor with refrigerant cooling + external chiller |
| Cutter speed | up to 5 000 rpm |
| Tooling & automation | optional Renishaw probe; optional 12-position tool changer; vertical Y axis + precise spindle C axis positioning for spline/hobbing work |
| Structure & safety | monolithic electro-welded bed; telescopic doors; chip conveyor under cutting area; LED lighting |
| Drives & control | Siemens drives; Siemens SINUMERIK ONE-CNC (networkable); compatible with SAPOVITE and weinCAD programming, including CAM 3D visualisation. |
| Industry 4.0 | Ready for network integration |
