Benefits & Technical Highlights

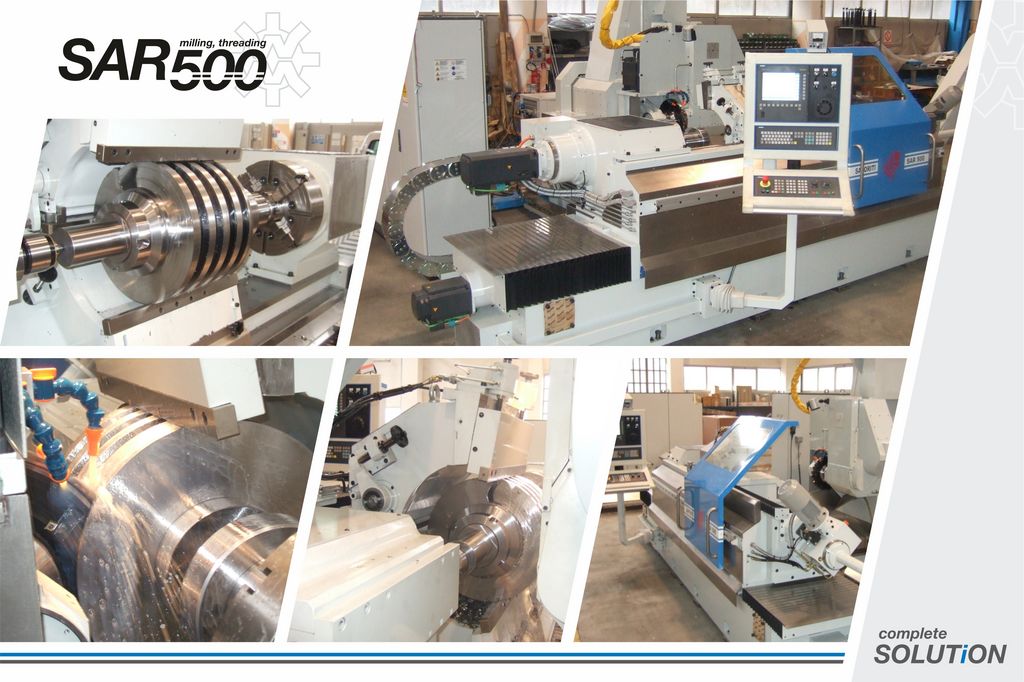

The SAR 500 is a heavy-duty threading and milling machine tailored to pump and compressor rotor manufacture. Built around a robust electro-welded structure with large roller guideways, the SAR 500 handles larger diameters and demanding materials while its patented anti-chatter solution ensures stable cutting and superior surface quality even under interrupted disc-cutter cutting conditions.
Benefits
Built specifically for pump and compressor rotors and high-precision screw profiles
High cutting torque and power for demanding materials and deep passes (example: 17-4-PH with 38 HRC or 360 HB)
Patented anti-vibration system reduces noise and improves surface finish and tool life
Heavy structural design and large roller guideways for lasting accuracy and minimal vibration
Full enclosures and Industry 4.0 connectivity for safe, modern production environments
Technical highlights
| Controlled axes | 5 CNC axes (2 linear, 1 rotary, 2 spindle) |
| Workpiece capacity | up to Ø 500 mm (rotor max Ø); standard workpiece length 1000 mm (longer on request) |
| Milling head | 46 kW motor; cutter torque 3 940 Nm; cutter speed 0 - 400 rpm; head tilting ±50° (available to ±90° upon request) |
| Cutters | disc cutter head up to Ø 440 mm (HSS or tipped cutters) |
| Machining capability | example stated, 80 mm depth single pass in 17-4-PH (demonstrates heavy-cut ability) |
| Tailstock | hydraulic tailstock; prismatic solutions for head tilt operations |
| Structure & safety | heavy electro-welded stress-relieved bed; high-precision roller guideways; full protection / enclosed option; LED lighting |
| Drives & control | Siemens drives; Siemens CNC with custom operator masks; water-chilled sealed motors |
| Industry 4.0 | Ethernet / internet connectivity available |
