Benefits & Technical Highlights

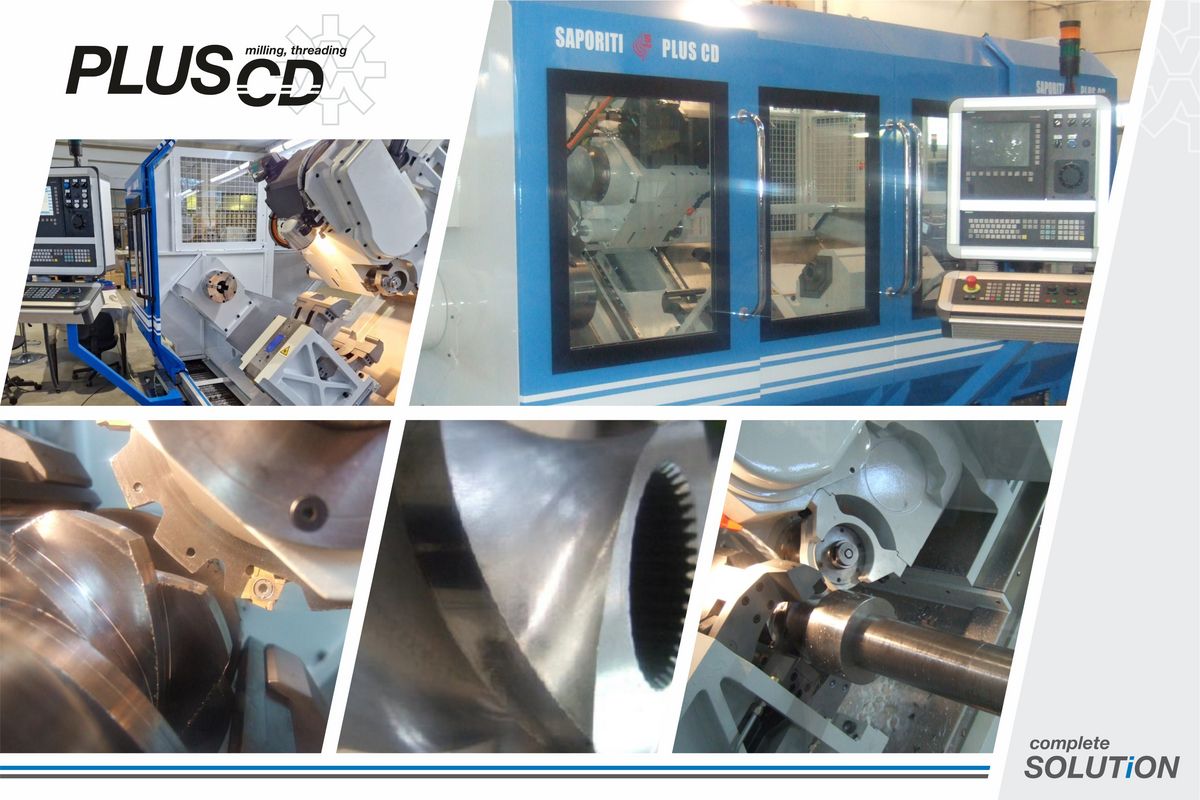

The SAPORITI PLUS CD is engineered for high-precision milling of screw profiles that require disc cutters, for example multi-lobe or cam-type co-rotating screws, pumps and compressor rotors. Its 45° inclined bed and closed, windowed safety enclosures give operators a clear view of the process while the machine’s patented anti-chatter system reduces spindle vibration and noise to deliver superior surface finish and longer tool life.
Benefits
Optimized for profiles produced with disc cutters (lobed/cam profiles, rotors)
Patented spindle anti-chatter device reduces vibration and noise, improving surface quality and tool life
Ergonomic inclined bed for clear process visibility and effective coolant/chip flow
Robust, enclosed design for high production reliability and operator safety
Siemens drives and CNC, Industry 4.0 ready
Technical highlights
| Controlled axes | 4 (Longitudinal, Transversal, Spindle, Cutters inclination) |
| Workpiece capacity | up to 10 000 mm length; max diameter 200 mm |
| Steady rest ranges | 15 - 120 mm; 20 - 130 mm; 30 - 200 mm (hydraulic, self-centering with long tungsten-carbide blades) |
| Cutter / head | max cutter Ø 200 mm; cutter inclination ±35° |
| Cutter speed | up to 350 rpm |
| Tailstock | prismatic hydraulic tailstock (works with head tilted) |
| Spindle motor | 23 kW sealed motor, refrigerant-cooled with external chiller |
| Structure & safety | 45° inclined monolithic electro-welded bed; full safety doors with wide windows; chips conveyor under cutting area |
| Drives & control | Siemens drives; Siemens CNC (networkable) |
| Lighting & service | LED lamps; Industry 4.0 compatible |
