For valve balls up to 30″ and 1100 mm OD, the PV 1000 offers unmatched rigidity and machining stability. Its 30° inclined grinding head provides an optimal operator view and effective coolant evacuation, while water-cooled spindles and torque motors ensure smooth, precise grinding.

Key Benefits

  • Robust steel frame with stainless interior coatings against rust

  • Adjustable tool holders for broad diameter range

  • Industry 4.0 ready with Ethernet and remote diagnostics

  • Torque motor + water-chilled spindle motors for efficiency

  • Wi-Fi Renishaw probe for fast centering

  • Hydraulic tool clamping for quick changeovers

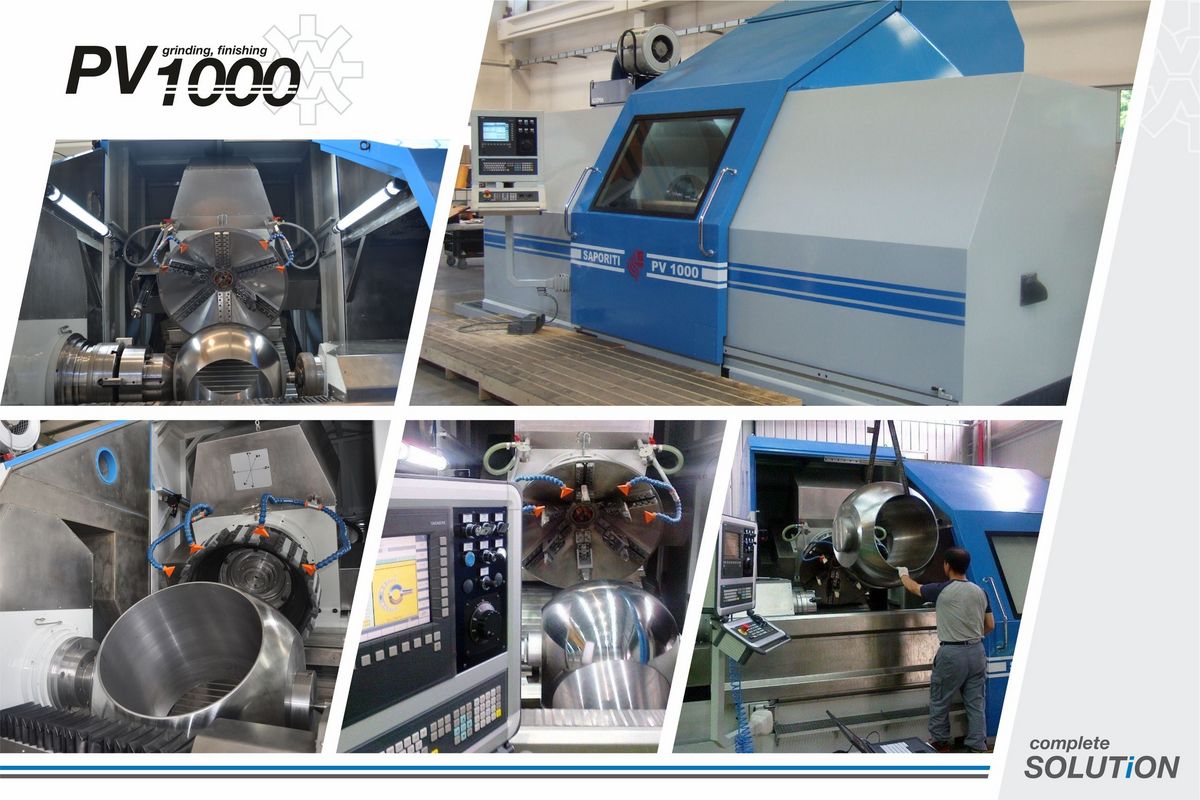

A collage of the PV 1000 Product Range

Technical highlights

Work range10″ - 30″ (ID) / up to 1100 mm OD
Coolant tank5000 L + vapor filter + optional chiller
CNC control

Siemens CNC with custom SAPORITI interface

Roundness≤ 0.01 mm
Surface finishRa 0.2 µm




NOTE:

A recessed base is recommended for the concrete foundation of large machines. A supporting frame can also be supplied upon request.
