The PV 1600 handles ball valves from 16″ to 44″ (ID) and up to 1600 mm OD. Its extremely rigid 50 t frame and precision axes ensure consistent accuracy even on massive workpieces. Equipped with high-power motors and micro-controlled Y axis, it guarantees perfect alignment and finish under continuous operation.

Key Benefits

  • Three linear controlled axes (X, Y, Z) for micro adjustment

  • Water-chilled spindles and torque motors for efficiency and longevity

  • Full stainless enclosure with large viewing windows

  • Quick setup and maintenance access through auxiliary doors

  • Hydraulic tailstock and telescopic axis cover

  • Industry 4.0 connectivity

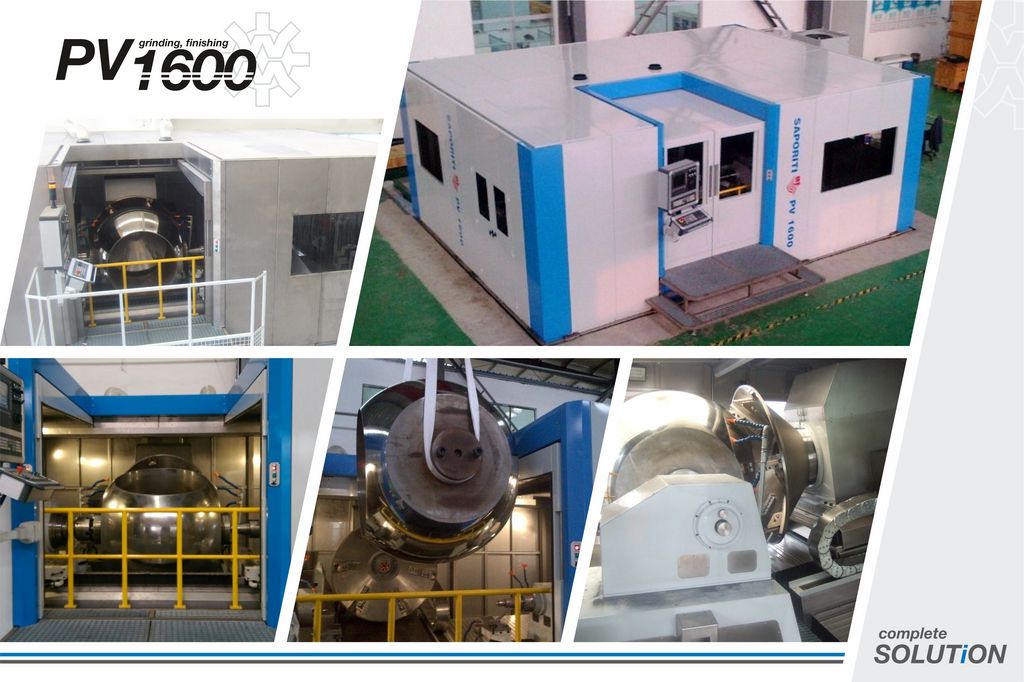

A collage of the PV 1600 Product Range

Technical highlights

Max OD1600 mm (63″ OD) / min 600 mm
Machine weight~50 000 kg
Torque motor

53 kW

Grinding motor46 kW
Coolant capacity5000 L + optional chiller
Roundness

≤ 0.01 mm

Surface finish

Ra 0.2 µm

CNC control

Siemens CNC





NOTE:A recessed base is recommended for the concrete foundation of large machines. A supporting frame can also be supplied upon request.
